Welcome to Ashcroft Digital Gauges

The Ashcroft Digital Gauges offer high quality and durability for an affordable price.

DG25- Ashcroft Type DG25 General Purpose Digital Pressure Gauge

Dial Size: 3"
Accuracy: 0.5 % terminal point accuracy
Wetted Materials: 17-4 ph sensor & 316L socket, laser welded

Features:
  • Five-digit LCD display with large .48˝ character size
  • New bar graph display (20 segment)
  • Nine engineering units of measure plus one user programmable unit
  • Nine engineering units of measure plus one user programmable unit
  • Capable of measuring gauge, vacuum and compound ranges from –14.7 psi through 25,000 psi
  • IP67 weatherproof enclosure
  • CE compliant, RoHs compliant, UL and cUL 61010-1 (approval pending)
  • The versatile and economical choice

Engineering Units:

psi, bar, inHg, cmHg, mmHg, kPa, mPa, kg/cm2, ftH2O, and customer defined unit

Ranges:

45 standard psi and bar ranges from –14.7 to 25000 psi, gauge, vacuum and compound ranges available

2089 - Ashcroft Digital Gauge - Test Gauge, Stainless Steel Case

Precision Digital Test Gauge Dial Size:3" ;
Accuracy: 0.05 % terminal point accuracy
Wetted Materials:316 Stainless Steel

Features:
  • .66" LCD digits, backlight display,
  • 3" welded SS Case and socket with SS protective cover for display
  • FM Class 1 Div 1 intrinsically safe, CE approved
  • Bar graph, Battery level indicator.
  • Menu driven display allows configuration of update rate, language, dampening,
  • backlight auto off and unit auto off
  • 21 point traceable calibration chart
  • Max/min and 12 selectable engineering units
  • Optional: Hard carrying case, Protective rubber boot

Engineering Units:

Vacuum, Compound & Absolute,

Ranges:

0/10 psi to 0/7000 psi and metric equivalents

2086 - Ashcroft Digital Gauge - Test Gauge, Stainless Steel Case

Precision Digital Test Gauge Dial Size:3" ;
Accuracy: 0.1 % terminal point accuracy
Wetted Materials:316 Stainless Steel

Features:
  • .66" LCD digits, backlight display,
  • 3" welded SS Case and socket with SS protective cover for display
  • FM Class 1 Div 1 intrinsically safe, CE approved
  • Bar graph, Battery level indicator.
  • Menu driven display allows configuration of update rate, language, dampening,
  • backlight auto off and unit auto off
  • 21 point traceable calibration chart
  • Max/min and 12 selectable engineering units
  • Optional: Hard carrying case, Protective rubber boot

Engineering Units:

Vacuum, Compound & Absolute,

Ranges:

0/10 psi to 0/7000 psi and metric equivalents

2084 - Ashcroft Digital Gauge - Test Gauge, Stainless Steel Case

Precision Digital Test Gauge Dial Size:3" ;
Accuracy: 0.25 % terminal point accuracy
Wetted Materials:316 Stainless Steel

Features:
  • .66" LCD digits, backlight display,
  • 3" welded SS Case and socket with SS protective cover for display
  • FM Class 1 Div 1 intrinsically safe, CE approved
  • Bar graph, Battery level indicator.
  • Menu driven display allows configuration of update rate, language, dampening,
  • backlight auto off and unit auto off
  • 21 point traceable calibration chart
  • Max/min and 12 selectable engineering units
  • Optional: Hard carrying case, Protective rubber boot

Engineering Units:

Vacuum, Compound & Absolute,

Ranges:

0/10 psi to 0/7000 psi and metric equivalents

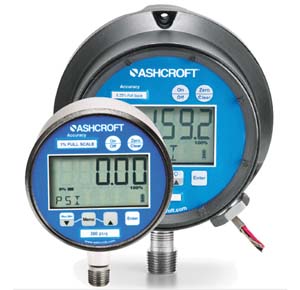

Dial Size:3", 4½"
Accuracy: ¼% F.S.
Wetted Materials:17-4 PH stainless steel sensor, 316 stainless steel socket

Features:
A multi-functional digital gauge with optional 4/20 mA output and (1) or (2) SPDT switches.
  • 1/4% full scale terminal point accuracy (.13% BFSL)
  • IP 65 weatherproof case three case options—stainless steel, fiberglass reinforced thermoplastic or aluminum
  • extra large display
  • intrinsically safe, Class I, Div. 1, pending
  • easy-to-use menu options (all password protected)
  • Five backlite display options, 12 engineering units, menu configure feature, update rate, dampen rate and auto-off

Ranges: Vac. thru 20,000 psi
