Ashcroft Industrial Pressure Gauges

Model/Description Dial Size Accuracy Features Wetted Materials Available Ranges
1010 - Ashcroft Industrial Gauge, Open Front, Aluminum Case 4.5", 6.0", 8.5", 12.0"  1.0% Full Scale  PLUS! Performance™, Rotary Geared Movement, Stem/Surface Mount  Steel, Stainless Steel, Brass, Monel  Vac to 20,000 psi
1017 - Ashcroft Industrial Gauge, Open Front, Aluminum Case 4.5", 6.0"  1.0% Full Scale  PLUS! Performance™, Rotary Geared Movement, Stem/Flush Mount  Steel, Stainless Steel, Brass, Monel  Vac to 20,000 psi

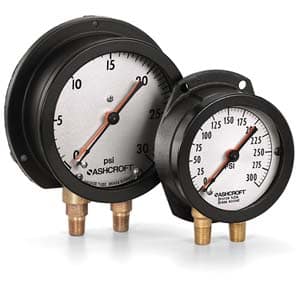

1038A - Ashcroft Duplex Gauge, Open Front, Cast Iron Case Ashcroft Industrial Gauge 6.0"  2-1-2% Full Scale  Indicates Two Independent Pressures, Stem/Flush, Surface Mount  Copper Alloy  30 psi to 1,000 psi, Compound Included
1038A - Ashcroft Duplex Gauge, Open Front, Aluminum Case 3.5", 4.5"  2-1-2% Full Scale  Indicates Two Independent Pressures, Stem/Flush/Surface Mount  Copper Alloy  30 psi to 1,000 psi, Compound Included
1122 - Open Front, Stainless Steel Case Ashcroft Industrial Gauge 2.5"  2-1-2% Full Scale  Movementless Gauge for Pumps, Turbines, and Compressors (Direct Drive Technology)  Copper Alloy  15 psi to 1,000 psi
1125 - Ashcroft Differential Gauge, Open Front, Aluminum Case 4.5", 6.0"  2-1-2% Full Scale  Stem/Flush/Surface Mount  Copper Alloy  30 psid to 100 psid
1125A - Ashcroft Differential Gauge, Open Front, Aluminum Case 4.5", 6.0"  2-1-2% Full Scale  Zero at 12 o'clock, Stem/Flush/Surface Mount  Copper Alloy  10/0/10 psid to 500/0/500 psid
1127 - Ashcroft Differential Gauge, Open Front, Aluminum Case 4.5", 6.0"  2-1-2% Full Scale  Stem/Flush/Surface Mount  Stainless Steel, Monel  10 psid to 1,000 psid
1128 - Ashcroft Differential Gauge, Open Front, Aluminum Case 4.5", 6.0"  2-1-2% Full Scale  Zero at 12 o'clock, Stem/Flush/Surface Mount  Stainless Steel, Monel  10/0/10 psid to 400/0/400 psid
1130 - Ashcroft Differential Gauge, Stainless Steel Case 2.0", 2.5", 3.5", 4.0", 4.5", 6.0"  2.0% Ascending Accuracy  Piston Actuator, High static low differential pressures, In-line, lower, back connections  Aluminum body, Brass body, Stainless Steel body (Buna O-ring)  5 psid to 150 psid
1131 - Ashcroft Differential Gauge, Stainless Steel Case 2.5", 3.5", 4.0", 4.5", 6.0"  2.0% Ascending Accuracy  Rolling diaphragm actuator, High static low differential pressures, In-line, lower, back connections  Aluminum body, Brass body, Stainless Steel body (Buna diaphragm)  5 psid to 100 psid
1132 - Ashcroft Differential Gauge, Stainless Steel Case 2.5", 3.5", 4.0", 4.5", 6.0"  2.0% Ascending Accuracy  Small convoluted diaphragm actuator, High static low differential pressures, In-line, lower, back connections  Aluminum body, Brass body, Stainless Steel body (Buna diaphragm)  1 psid to 60 psid
1133 - Ashcroft Differential Gauge, Stainless Steel Case 3.5", 4.0", 4.5", 6.0"  2.0% Ascending Accuracy  Large convoluted diaphragm actuator, High static low differential pressures, In-line, lower, back connections  Aluminum body (Buna diaphragm)  2 IWD to 200 IWD
1150H - Reid Vapor, Test Gauge, Open Front, Aluminum Case 4.5"  .5% Full Scale  Measures Vapor, Pressure of Petroleum Products  Copper Alloy  15 psi to 600 psi

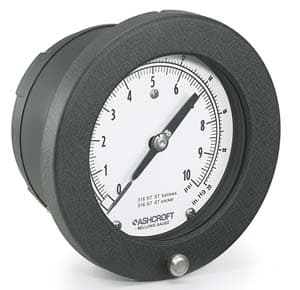

1187 - Ashcroft Industrial Gauge, Solid Front, Aluminum Case 4.5", 6.0", 8.5"  2-1-2% Full Scale  Bellows-Actuated, Flush Mount  Stainless Steel, Brass, Monel  10 I W Vac to 10 psi

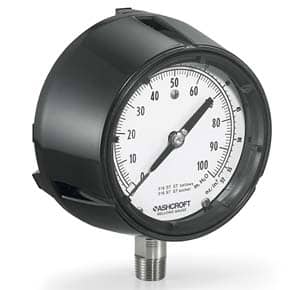

1188 - Ashcroft Industrial Gauge, Solid Front, Phenol Case 4.5"  2-1-2% Full Scale  Bellows-Actuated, Stem/Flush/Surface Mount  Stainless Steel, Brass, Monel  10 I W Vac to 10 psi

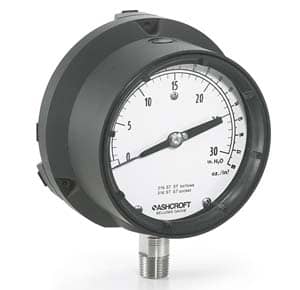

1189 - Ashcroft Industrial Gauge, Solid Front, Aluminum Case 4.5", 6.0", 8.5"  2-1-2% Full Scale  Bellows-Actuated, Stem/Flush/Surface Mount  Stainless Steel, Brass, Monel  10 I W Vac to 10 psi

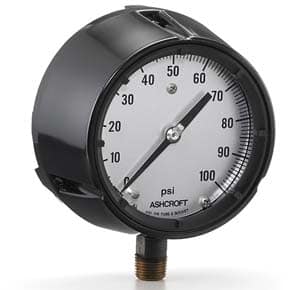

1220 - Ashcroft Industrial Gauge, Open Front, Aluminum Case 4.5", 6.0", 8.5"  1.0% Full Scale  PLUS! Performance™, Rotary Geared Movement, Stem/Flush/Surface Mount  Steel, Stainless Steel, Brass, Monel  Vac to 20,000 psi

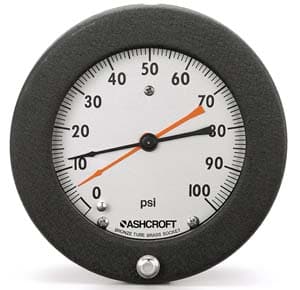

1339A - Ashcroft Duplex Gauge, Open Front, Aluminum Case 4.5", 6.0"  2-1-2% Full Scale  Indicates Two Independent Pressures  Copper Alloy  30 psi to 1,000 psi, Compound Included
1490 - Ashcroft Diaphragm Gauge, Open Front, Polysulfone Case 2.5", 3.5"  2-1-2% Full Scale  Low Pressure, Diaphragm Gauge  Beryllium Copper, Brass, Polysulfone, RTV Silicone  10 IW to 15 psi Including Vacuum and Compound

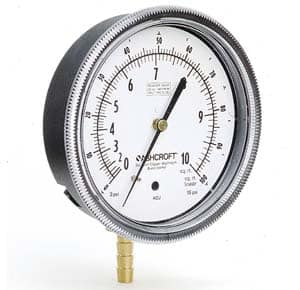

1495 - Ashcroft Diaphragm Receiver Gauge, Open Front, Polysulfone 2.5", 3.5"  2-1-2% Full Scale  Low Pressure, Diaphragm Gauge  Beryllium Copper, Brass, Polysulfone, RTV Silicone  3 to 15 psi, 0-100%, 0-10 Square Root, Linear Dials
5503 - Ashcroft Differential Gauge, Open Front, Aluminum Case 4.0", 6.0"  1.6% Full Scale  Stem/Surface/Pipe Mount  Stainless Steel, Duratherm 600  10 IWD to 600 psid
5509 - Ashcroft Differential Gauge, Open Front, Aluminum Case 4.0", 6.0"  2.5% Full Scale  Stem/Surface/Pipe Mount  Stainless Steel, Duratherm 600  10 IWD to 300 psid
