Ashcroft Stainless Steel Pressure Gauge

You have reached www.ashcroft-gauges.com. We are an Authorized Ashcroft Stocking Distributor and we can offer you excellent prices and quick deliveries from stock as well as friendly and knowledgeable support on the products that we sell.

Model/Description Dial Size Accuracy Features Wetted Materials Available Ranges

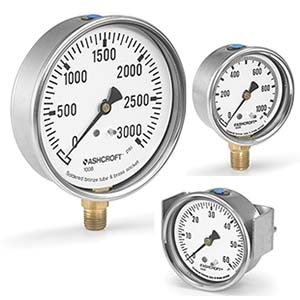

1008A/AL - Stainless Case/Crimped Ring, Liquid Filled, Dry or Field Fillable General Purpose Gauges 63mm, 100mm  3-2-3% Full Scale  Optional mounting kits for back connect gauges, PowerFlex™ movement, True Zero™, FlutterGuard™ (optional) Bronze/Brass vac. - 15,000 psi and compound
1008S - Open Front, Stainless Steel Case Gauge  40mm, 50mm  3-2-3% Full Scale  PLUS! Performance™, True Zero, Stem/Flush Mount  316 Stainless Steel  vac. to 15,000 psi
1008S - Open Front, Stainless Steel Case Gauge  63mm, 100mm  3-2-3% Full Scale  PLUS! Performance™, True Zero, PowerFlex™ Movement, Stem/Flush Mount  316 Stainless Steel Vac to 15,000 psi
1008S/SL - Stainless Steel Pressure Gauge 63 mm, 100 mm ASME B40.1 Grade B (±3-2-3% of span) Center back connection only 316 Stainless Steel vac. to 20,000 psi

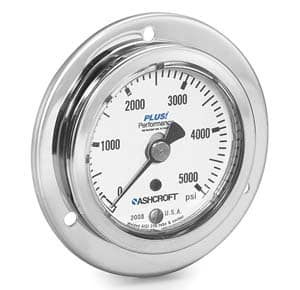

Type 2008S - Panel Builders Gauge 63 mm 1.6%, Optional 1% Full Scale PLUS! Performance, True Zero, Power Flex Movement, flange is welded to case, dry or liquid filled 316L SS Vac, Compound, 0 - 15psi through 1-15,000 psi and all equivalent metric ranges

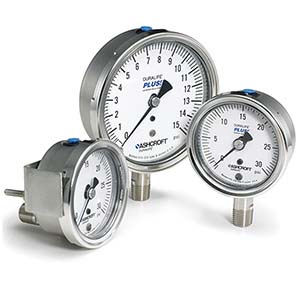

1009 - Stainless Steel Pressure gauge - Duralife® Pressure Gauge 2.5", 3.5"  ASME B 40.1 Grade 1A (±1% of span) PLUS! Performance™, True Zero, PowerFlex™ Movement, Stem/Flush Mount  Stainless Steel
 Brass
Vac to 15,000 psi
1009 - Open Front, Stainless Steel Case Gauge  4.5", 6.0"  ASME B 40.1 Grade 1A (±1% of span) PLUS!™ Performance, stem/flush/surface mountt  Steel
Stainless Steel
 Brass
 Monel
Vac to 30,000 psi
1020S - Christmas Tree Gauge, Open Front, Stainless Steel Case  4.5"  ASME B 40.1 Grade 1A (±1% of span) Designed for the Oil Fields  Stainless Steel Tube, Steel Socket  1,000 psi to 20,000 psi
T5500 - T6500 - All Welded Stainless Steel Process Pressure Gauge 100mm (4"), 160mm (6") Class 1 (EN) PLUS! Performance, optional Monel wetted system 316L SS
 Monel
vac to 20,000 psi

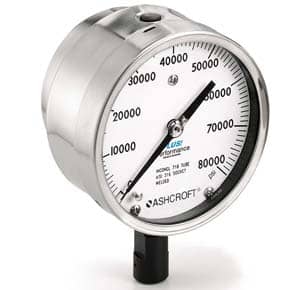

1109 - High Pressure Gauge, Solid Front, Stainless Steel Case  4.5"  ASME B 40.1 Grade 1A (±1% of span) PLUS! Performance™  Stainless Steel
 Monel
 Inconel
SD: vac. to 1,500 psi/2,000-20,000 psi; WD: 50,000-100,000 psi
