N-Series High Pressure Switches
Ashcroft® N-Series electronic pressure
switches have proven reliable in the toughest
industrial applications. The pressure
sensor is a standard Ashcroft K-Series
thin film transducer. The signal developed
in the transducer is processed on a conformal
coated printed circuit board to produce
an output to a high quality electromechanical
relay, which is rated for
10,000,000 cycles at rated load! The result
is a long lasting pressure switch that will
outlast mechanical switches in high cycle
applications such as metal stamping
presses, plastic injection molding
machines, and other machine tool and
special equipment. N-Series also features
narrow, adjust-able deadbands that can be
adjusted to less that 0.5% of range, solving
many pipeline and elevated tank applications
that are out of the reach of
mechanical products.
The indicating model is ideally suited for
applications where both a pressure indicator
and a switch output for alarm, shutdown,
control or interlock are needed.
Sludge and slurry applications in wastewater
and pulp and paper mills often
require costly diaphragm seals to isolate
instruments from the clogging effects of the
process. You can save money by installing
N-Series with indication on a single seal.
You can even set the switch set and reset
points on a test bench without pressure on
the system, using the indicator and status
lights.
NPI-N4
NPI – Single setpoint, adjustable deadband, process
and setpoint indication
N4 – Watertight NEMA 3, 4, 4X, 13 and IP66
N-Series Specifications
NPA-N4
NPA – Single setpoint, adjustable deadband
N4 – Watertight NEMA 3, 4, 4X, 13 and IP66
N-Series Specifications

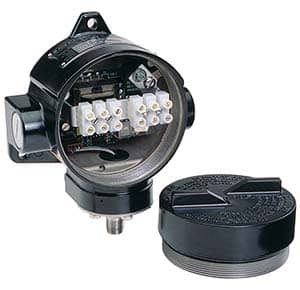

NPA-N7
NPA – Single setpoint, adjustable deadband
N7 – Explosion proof NEMA 3,4,4X,13,7,9 and
IP66
N-Series Specifications
Ordering Information
- Please fill this form to receive a e-mail quote.
- Requests can also be sent to sales@ashcroft-gauges.com
- If this is urgent please call 1 (866) 415-2002
- Please see Specifications for more detail
