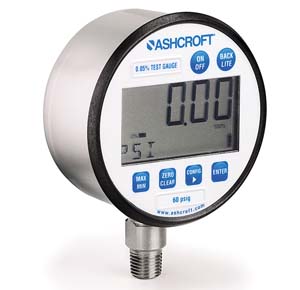

Types 2089, 2086 and 2084 Precision Digital Test Gauges

Types 2089, 2086 and 2084 Precision Digital Test Gauges

Type 2089, 2086 and 2084  Digital Pressure Test Gauge


  • Unmatched accuracy of ±.05% total error band

    • ­Temperature corrected from 0/150°F
  • Breakthrough readability and portability
    • 5 digit LCD display
    • Largest display height of .66" . . . larger than competitors 4.5" gauges
  • Rugged portable design
    • Weatherproof NEMA IV, IP65 case
    • CE, FM and CSA
    • Stainless Steel case-to-socket weld for strength
    • Stainless Steel cover protects keypad
  • Global/highly configurable
    • Nine options including 12 units of measure, 7 languages and password protected calibration and disable function
  • Safety features include
    • Pressure range on keypad to reduce accidental overpressure
    • Proof pressure 2 x gauge range
    • Meets ASME B40.7
  • % of reading bar graph






  The Ashcroft Type 2089 Digital Test Gauge has Standard: .66" LCD digits, backlite display, 3" welded SS case and socket with SS protective cover for display. FM Class 1 Div. 1 intrinsically safe, CE approved, bar graph, battery level indicator. Menu driven display allows configuration of update rate, language, dampening, backlight auto off and unit auto off. Max./min. and 12 selectable engineering units; Optional: Hard carrying case, protective rubber boot



Specifications for Ashcroft Type 2089, 2086 and 2084  Digital Pressure Gauge
Additional Information
