Ashcroft® Precision & Test Gauges
|
| Model/Description |
Dial Size |
Accuracy |
Features |
Wetted Materials |
Available Ranges |
| 1082 -
Ashcroft® Test Gauge, Solid Front,
Aluminum Case Ashcroft® Test G |
4.5", 6.0", 8.5" |
.25% Full Scale |
Temperature Compensated, Rotary Geared Movement,
External Zero Adjust, Mirror Band Dial |
Brass, Monel |
Vac to 10,000 psi |
| 1088 - Duradrive,
Ashcroft® Test Gauge, Solid
Front, Phenol Case |
4.5" |
.25% Full Scale |
Direct Drive Technology, External Zero Adjust,
Mirror Band Dial |
Inconel Coil, Stainless Steel Socket |
30 psi to 6,000 psi |

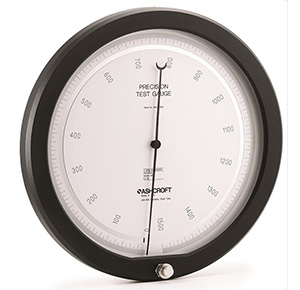

| A4A - Ashcroft® Precision Test Gauge, Solid
Front, Aluminum Case |
6.0", 8.5", 12.0", 16.0" |
.1% Full Scale |
Standard: Solid Front, mirror band dial,
knife-edge pointer, external zero adjust, bleeder tip. Optional:
Temperature Compensation, Slotted Link, Peak load indicator, wall
mount, various inlet fittings |
Beryllium Copper or 403 Stainless Steel, 303
Stainless Steel |
Vacuum pressure & compound 0/15-0/100,000 PSI and
metric equivalents |
|
